Anadarko – Multi-Client PVT Study

Last updated: 10 May 2022

SCOOP/STACK/Merge – Multi-Client Study

The SCOOP/STACK/Merge multi-client project was first initiated in February 2019. The main objective of the study was to create one, field-wide equation of state (EOS) model for the entire Anadarko Basin. Since then more data has been incorporated into the model, resulting in a more robust thermodynamic description. But what is a field-wide EOS model? In simple terms, you can think of it as a field-wide “PVT correlation” applicable for all fluids in a given basin (black oils | volatile oils | near-critical fluids | gas condensates | wet gases | dry gases). The model is tuned/adjusted to measured PVT laboratory data available in that particular basin, and can be used to consistently predict PVT data such as saturation pressures, formation volume factors (FVF), solution GORs/CGRs, densities, compressibilities and viscosities across a field. Here are some key information about the study.

Number of PVT Samples

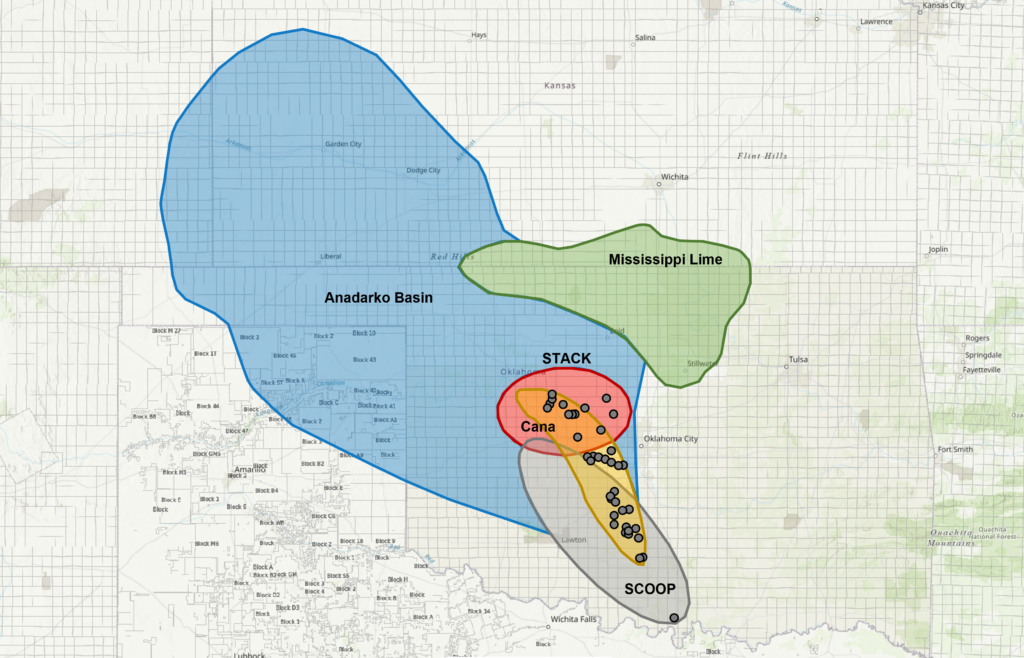

In this study, 44 PVT samples from 41 different well locations were included in the EOS model development work. Of the 44 samples, 23 are bubble point samples and the other 21 samples are dew point. There is no dry gas sample in this study. The minimum C7+ component is 1.5 mol% and the maximum is 37.6 mol%. The production comes from Woodford, Springer, Meramec, Osage and Cunningham formation, with recombined GOR ranging from 700 to 54,000 scf/STB and API ranging from 38 to 61.

Participating Companies

New companies are joining the study every single year.

  • 89 Energy (Casillas Petroleum)
  • Camino Natural Resources
  • Coterra Energy (Cimarex Energy)
  • Continental Resources
  • Marathon Oil
  • Roan Resources

Experimental Overview

Experiments #
CCE44
CVD19
DLE12
Separator test3
Oil viscosity8
Single stage flash of Separator Oil30
Recombination with multiple GORs4

Table above summarize PVT experiments performed on all samples.

Unconventional Fluids Systems

Unconventional fluid systems demonstrate strong field-wide PVT consistency although the reservoir fluid (i.e. composition) varies significantly. Reservoir fluid differences are dominantly determined by thermal maturity, which is the main reason behind the consistent fluid characteristics over large areas. What this means in practice, is that we can use one fluid model (i.e. EOS model) for the entire field, but what changes from area-to-area/well-to-well is the GOR (i.e. composition). This has been one of the key findings in all our studies.

Which Unconventional Basins Have We Conducted This Type of Work?

  • United States
    • Eagle Ford / Austin Chalk – Texas (Multi client)
    • Permian (Midland & Delaware) – Texas & New Mexico (Multi client)
    • Anadarko Basin (SCOOP/STACK/Merge) – Oklahoma (Multi client)
    • Bakken – North Dakota (Multi client)
    • Utica Basin – Pennsylvania (Single client)
    • Arkoma Basin – Oklahoma (Single client)
  • Canada
    • Montney, Alberta & British Columbia (Multi client)
    • Duvernay, Alberta (Multi client)
    • Garrington, Alberta (Single client)
  • Rest of the world
    • Jafurah basin, Saudi Arabia (Single client)
    • Vaca Muerta, Argentina (Single client)

Want to know more? Send an e-mail to carlsen@whitson.com

###
